Beam stresses and deflections (Beam-Column)¤

This live script is written as a guided walkthrough for a verification benchmark. It compares a known structural response with the result produced by the OpenSeesMatlab workflow. Read the text cells first, then run each code cell in order so that the variables, model state, and recorded results are available for the later sections.

Beam stresses and deflections — PyMAPDL Examples

clc; clear;

opsMAT = OpenSeesMatlab();
ops = opsMAT.opensees;

ops.wipe();
ops.model('basic', '-ndm', 2, '-ndf', 3);

%% -----------------------------
%  Geometry and material
%  Units: in, lb, psi
%% -----------------------------
E  = 30e6;          % psi
nu = 0.3;           % not used in 2D elasticBeamColumn
A  = 50.650;        % in^2
Iz = 7892.0;        % in^4  (major bending inertia)
c  = 15.0;          % in     (distance from neutral axis to extreme fiber)

L  = 120.0;         % each segment length, in
w  = 10000/12;      % lb/in

%% -----------------------------

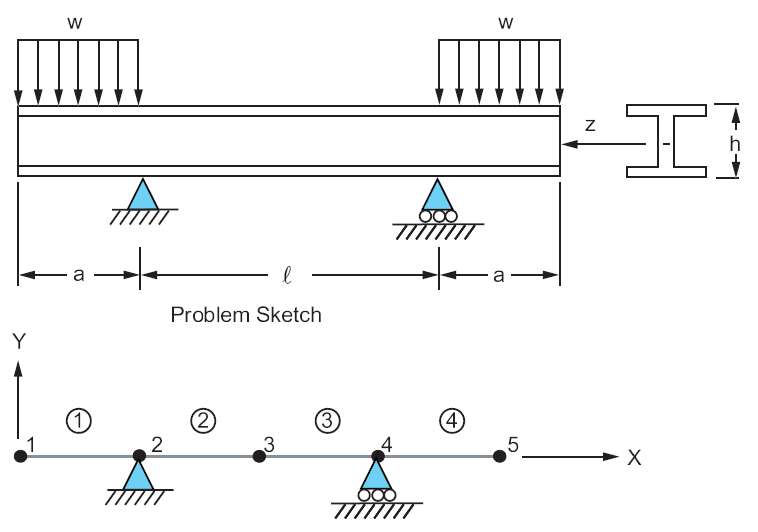

%  Nodes
%% -----------------------------
ops.node(1,   0.0, 0.0);
ops.node(2, 120.0, 0.0);
ops.node(3, 240.0, 0.0);
ops.node(4, 360.0, 0.0);
ops.node(5, 480.0, 0.0);

%% -----------------------------
%  Boundary conditions
%  Same restraint intent as the reference example
%% -----------------------------
ops.fix(2, 1, 1, 0);   % UX, UY fixed
ops.fix(4, 0, 1, 0);   % UY fixed

%% -----------------------------
%  Transformation and elements
%% -----------------------------
ops.geomTransf('Linear', 1);

ops.element('elasticBeamColumn', 1, 1, 2, A, E, Iz, 1);
ops.element('elasticBeamColumn', 2, 2, 3, A, E, Iz, 1);
ops.element('elasticBeamColumn', 3, 3, 4, A, E, Iz, 1);
ops.element('elasticBeamColumn', 4, 4, 5, A, E, Iz, 1);

%% -----------------------------
%  Loads: distributed loads on the two overhangs
%% -----------------------------
ops.timeSeries('Linear', 1);
ops.pattern('Plain', 1, 1);

% 2D beamUniform: Wy along local y
% downward load => negative
ops.eleLoad('-ele', 1, '-type', '-beamUniform', -w);
ops.eleLoad('-ele', 4, '-type', '-beamUniform', -w);

opts = opsMAT.vis.defaultPlotModelOptions;
opts.nodes.showLabels = true;
opts.elements.showLabels = true;
opts.loads.showElement = true;

opsMAT.vis.plotModel(opts=opts);

Output

[OpenSeesMatlab] Model summary
  Nodes: 5
  Beam elements: 4

ylim([0 1])
axis off

Nsteps = 2;
ops.constraints('Plain');
ops.numberer('RCM');
ops.system('BandGeneral');
ops.test('NormDispIncr', 1.0e-12, 50);
ops.algorithm('Linear');
ops.integrator('LoadControl', 1.0 / Nsteps);
ops.analysis('Static');

ODB = opsMAT.post.createODB("myODB", interpolateBeamDisp=9);  % create ODB, 6 points in interpolateBeamDisp

Output

Output file: .openseesmatlab.output\Responses-myODB.odb\output.h5

ok = ops.analyze(Nsteps);
ODB.close();

nodeResp = opsMAT.post.getNodalResponse("myODB");

nodeTags = nodeResp.nodeTags;
idx = nodeTags == 3;
dispN3 = nodeResp.disp.uy(:, idx);  % nsteps * 1
uy_mid = max(dispN3(:));

deflection_target = 0.182;     % in
deflection_ratio = abs(uy_mid) / deflection_target;

fprintf('Deflection (in)     %12.6f %20.6f %12.6f\n', deflection_target, uy_mid, deflection_ratio);

Output

Deflection (in)         0.182000             0.182463     1.002545

opsMAT.vis.plotNodalResponse(nodeResp, respType="disp", stepIdx="absMax", respComponent="UY");
axis off

frameResp = opsMAT.post.getElementResponse("myODB", eleType="Frame");

eleTags = frameResp.eleTags;
idxE2 = eleTags == 2;

secFo = frameResp.sectionForces.Mz(:, idxE2, end);  % last section, ele-2
M_mid = max(abs(secFo(:)));
sigma_max = M_mid * c / Iz;

stress_target     = 11400.0;   % psi
stress_ratio     = sigma_max / stress_target;

fprintf('Stress (psi)        %12.6f %20.6f %12.6f\n', ...
    stress_target, sigma_max, stress_ratio);

Output

Stress (psi)        11400.000000         11403.953371     1.000347

opts = opsMAT.vis.defaultPlotFrameResponseOptions;
opts.style = "wireframe";

opsMAT.vis.plotFrameResponse(frameResp, ...
    stepIdx="absMax", respType="sectionForces", respComponent="Mz",...
    opts=opts);
ylim([0, 1])
ax = gca;
t = ax.Title;
t.Units = "normalized";
t.Position = [0.5, -40, 0];
axis off
